Outdoor LED Mesh Display Specifications

Pixel Pitch	Pixel	Brightness	Module Width	Weight	Transparency
P31.25	1024 dots/m²	6144 CD/m²	0.5 m	9.6 kg/m²	56%
P40	625 dots/m²	3750 CD/m²	0.32 m	6.6 kg/m²	62%
P50	400 dots/m²	2400 CD/m²	0.5 m	4.1 kg/m²	65%
P55	324 dots/m²	1944 CD/m²	0.44 m	3.7 kg/m²	71%
P62.5	256 dots/m²	1536 CD/m²	0.5 m	2.95 kg/m²	75%
P80	156 dots/m²	936 CD/m²	0.32 m	2.32 kg/m²	81%
P100	100 dots/m²	600 CD/m²	0.5 m	1.5 kg/m²	86%

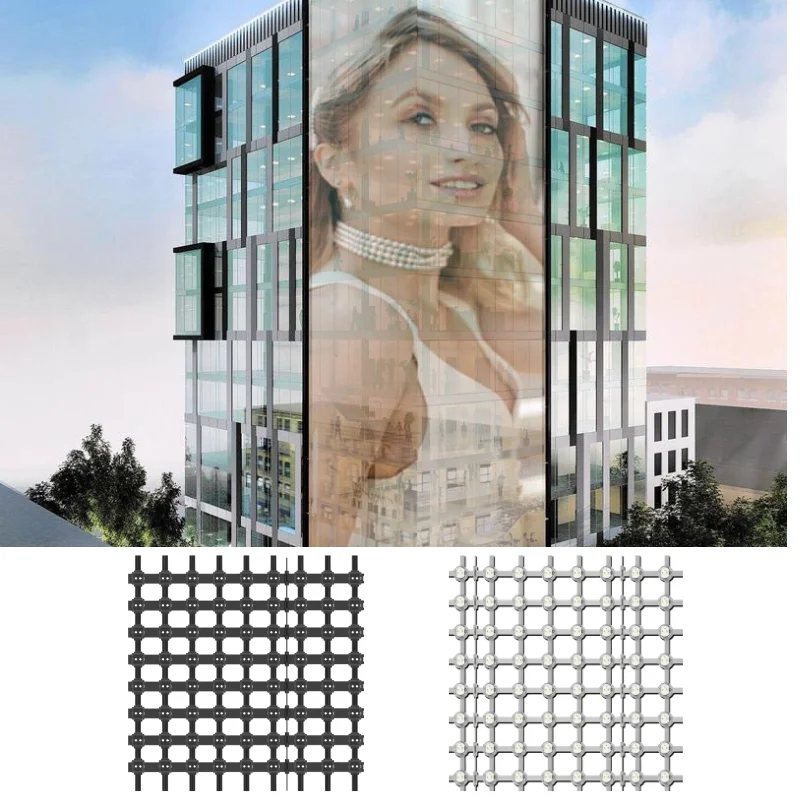

Outdoor LED Mesh Display for Outdoor Advertising & Architecture

• Architectural building facade LED screen
• LED mesh screen for outdoor advertising, outdoor concerts, festivals, and live stages
• Large-scale advertising in smart city infrastructure
• Transparent window displays for shopping malls and showrooms

Professional Installation for Outdoor LED Mesh Display

Our Outdoor LED Mesh Display offers a seamless and reliable installation process. Follow these key steps for optimal setup:

• Structural Setup: Begin by securing the steel structure unit to the designated wall or base. Ensure precise depth adjustments for non-luminaire areas to guarantee stability.

• Grid Screen Installation: Attach the grid screen structure with self-tapping screws and iron-fixed steel wires. For installations exceeding 5 meters in height, an intermediate support structure is required for additional reinforcement.

• Mesh Screen Assembly: Secure the mesh screen with spring buckles and steel wire locks to ensure a firm and secure fit. Orchid screws can be used for extra strength.

• Cable Connections: Insert the 2mm mesh screen cable and ensure all connections are secure. Perform necessary adjustments to ensure the display works optimally.

We offer professional installation guidance to ensure your Outdoor LED Mesh Display is set up perfectly and operates smoothly. With our expert support, you can rest assured that your installation will be worry-free and efficient.



Outdoor LED Grid Screen Customization Process

At every step of your Outdoor LED Grid Screen journey, we ensure precision and satisfaction. Our customized process is designed to provide you with high-quality products, supported by expert guidance and exceptional service:

• Customer Consultation: We begin by understanding your specific needs, ensuring the right solution for your outdoor display requirements.
• Demand Analysis: Our team evaluates your project to offer a tailored solution, ensuring optimal performance for your unique setup.
• Scheme Quotation & Validation: We provide a detailed quotation based on your requirements, and once confirmed, we validate the final design.
• Production & Quality Inspection: After signing the contract, we arrange production and conduct thorough quality checks before shipment.
• Service Tracking & Aftercare: Our support doesn’t stop after delivery. We offer ongoing service tracking and reliable after-sales support to ensure long-term performance.





Additionally, our engineering team is committed to providing one-on-one professional support, offering quick, expert advice to guide you through every stage. We’re here to ensure you not only receive a top-tier Outdoor LED Grid Screen but also experience seamless, professional service from start to finish.



Why Choose LED Mesh Display Over Traditional LED Panels?

When selecting an outdoor LED screen, it’s not just about screen size or brightness—it’s about integration, safety, maintenance, and long-term efficiency. Traditional cabinet-style LED panels have served the industry well, but they come with limitations: they are heavy, rigid, opaque, and energy-intensive.

LED mesh displays, by contrast, are engineered for the evolving needs of modern architecture, mobile events, and high-performance outdoor installations. With their lightweight, see-through, and flexible design, high brightness outdoor mesh LED solve many challenges that traditional LED panels can’t.

From reducing structural stress on buildings to allowing wind and daylight to pass through, flexible LED mesh panel are purpose-built for dynamic environments where space, aesthetics, and practicality matter. Whether you’re outfitting a glass curtain wall, designing a stage backdrop, or planning an urban landmark display, mesh displays offer unmatched versatility and peace of mind.

Recommended Reading: Why LED Mesh Screens Are the Future of Outdoor LED Displays



Side-by-Side Comparison: LED Mesh Display vs. Traditional LED Panels

Feature	Traditional LED Panel	LED Mesh Display
Weight	Heavy steel cabinet; increases load-bearing pressure on mounting structures	Ultra-light aluminum or polymer design; up to 60% lighter, easier to install
Transparency	Fully opaque, blocks natural light and ventilation	Up to 80% transparency; ideal for glass buildings and see-through displays
Wind Resistance	Requires heavy-duty framing and reinforcement in high-wind zones	Wind-permeable design; reduces wind load by allowing air to pass through
Form Factor	Rigid, flat-panel construction; limited to simple surfaces	Flexible and bendable; adapts to curves, columns, and creative architecture
Energy Efficiency	High power consumption and heat generation	Consumes up to 30% less energy; cooler operation, lower utility costs



From a Buyer’s Perspective: What This Means for You

✅ Faster Installation & Lower Costs – Mesh displays are easier to transport, require less structural support, and cut labor time significantly.

✅ Safer & More Compliant – Their lightweight and wind-permeable nature reduces risk on glass walls and tall buildings, often making permit approval easier.

✅ Visually Appealing – The semi-transparent design blends with the architecture instead of covering it, allowing you to deliver messages without compromising aesthetics.

✅ Scalable & Future-Proof – Modular mesh systems adapt easily to growing display needs—whether you’re covering 30㎡ today or expanding to 300㎡ next year.



Frequently Asked Questions

Is the LED mesh screen bright enough for daytime use?
Yes. Our LED mesh displays deliver up to 6000 nits of brightness, making them clearly visible even in direct sunlight. This ensures sharp content visibility for outdoor advertising, daytime concerts, and architectural displays.

Can LED mesh screens be installed on glass curtain walls?
Absolutely. Thanks to their ultra-lightweight and semi-transparent design, our mesh screens can be mounted directly onto glass surfaces without heavy reinforcement. This makes them ideal for high-rise buildings, shopping malls, and modern commercial facades.

How long does installation usually take?
Our lightweight LED mesh displays are ideal for wall-mounted outdoor applications, offering flexibility without compromising visibility. The modular structure allows for rapid assembly. A typical medium-scale mesh display (e.g., 50–100㎡) can be installed in 1–2 days, depending on the mounting surface and height.

Are the screens waterproof and weather-resistant?
Yes. All of our IP67 waterproof LED mesh screens are fully protected against rain, dust, and humidity. They’re engineered to operate safely in outdoor environments year-round, from deserts to coastal cities.

Can I customize the pixel pitch or panel size?
Yes. We offer flexible customization options based on your viewing distance, screen size, and content type. Common pitches include P25, P31.25, P50, P100, but we can tailor the module dimensions to meet your project needs.

Does the system support full video playback and real-time control?
Absolutely. Our LED mesh displays support full RGB video, real-time media playback, and remote control via PC or mobile, with optional integration into existing lighting or show control systems.

What kind of support and warranty do you offer?
We provide global remote support, detailed user manuals, and a standard 2–3 year warranty, extendable upon request. Technical support teams are available for both online consultation and on-site assistance (where applicable).

Is LED mesh more energy-efficient than traditional panels?
Yes. Due to the open-grid design and optimized LED spacing, mesh screens typically consume 30% less power compared to traditional cabinet displays—making them more sustainable and cost-effective over time.
